Embossed Stainless Steel Wall Panels for High-Traffic Interiors

Oct 26, 2026

By Ferosteel Technical Team | Reviewed by Engineering Dept. | Last updated: October 2026

Quick Answer: In high-traffic interiors — mall corridors, elevator lobbies, stations, restaurants — embossed stainless steel wall panels outperform mirror and brushed sheet because the raised texture hides fingerprints, smudges and fine scratches, and keeps walls looking clean for years. Use 304 grade, 0.6–1.0 mm thickness, dense patterns (vertical line, small diamond) for contact areas, install with concealed clips or adhesive, and wipe clean weekly.

What Makes a Wall "High-Traffic"

A wall is high-traffic when it is touched, brushed past, leaned on or cleaned daily. Typical zones:

Mall corridors and shop fronts — thousands of passers-by per day, shopping bags brushing the wall

Elevator cabs and lobbies — constant hand contact, cleaning every shift

Train stations, airports, bus terminals — luggage trolleys, crowds, deep cleaning cycles

Restaurant entry and bar fronts — food spills, drinks, grease

Hospital and clinic corridors — sanitary wipe-downs multiple times a day

Office reception and washroom zones — constant public contact

The failure mode is always the same: a wall that looked perfect at opening, then looks tired within months because every fingerprint, scuff and smudge shows.

Why Embossed Beats Mirror and Brushed in These Zones

Surface

Fingerprints

Scratches

Daily Cleaning

Long-Term Look

Mirror (8K)

Shows every touch

Every scuff shows

Hard to keep clean

Tires fast

Brushed (No.4)

Shows on flat areas

Lightly hidden

Weekly wipe

Moderate

Embossed / textured

Broken up by relief, barely visible

Hidden by grooves

Easy wipe or brush

Stays clean-looking for years

The embossed relief does two things at once: it breaks up the reflection so smudges do not show as dark streaks, and it adds micro-hardness to thin sheet so it resists denting from bumps.

In a daily-use wall, that is the difference between a wall that needs re-polishing and one that simply needs a wipe.

Pattern Selection for High-Traffic Walls

Not all embossed patterns behave the same on a busy wall:

Zone

Recommended Pattern

Avoid

Elevator cab interior

Vertical line, small diamond

Deep moon rock, big wave (too busy in small space)

Elevator lobby

Medium diamond, standard line

Very sparse patterns

Mall corridor

Vertical line band, fine diamond

Bold statement patterns (will look noisy over long walls)

Station / concourse

Small diamond, 5-bar

Mirror panels (abrasion from luggage)

Restaurant / bar

Antique square, PVD bronze texture

Light silver (shows food splashes)

Hospital corridor

Smooth-brushed embossed, easy-clean grade

Porous deep patterns (cleaning compound trapped)

Rule of thumb: Dense, fine patterns hide daily wear best. Save bold relief (moon rock, big wave) for low-traffic feature walls, not contact surfaces.

**

Figure 1: Water-wave embossed stainless cladding on a real commercial feature wall — the relief gives depth while remaining easy to maintain.

Specifications for High-Traffic Wall Panels

Parameter

Recommendation

Grade

304 standard interior; 316L for humid, coastal or wash-down areas

Thickness

0.6–0.8 mm for most walls; 0.8–1.0 mm for contact zones and kick plates

Standard sizes

1219×2438 mm (4×8 ft); 1219×3048 mm; cut-to-fit

Pattern

Vertical line, small diamond, 5-bar for contact areas

Color

Silver for neutral; PVD bronze/gold for hospitality (hides dust)

Backing / frame

Concealed aluminum clips or adhesive to substrate

Kick plate

Add 100–150 mm diamond embossed kick plate at floor line

Weight example

A 0.8 mm embossed panel, 1219 × 2438 mm:

Weight ≈ 1.219 × 2.438 × 0.8 × 7.93 = ≈ 18.8 kg per sheet

For wall cladding this is light enough for standard aluminum framing.

**

Figure 2: Vertical-line embossed panels on a mall corridor wall — dense texture hides the constant contact from shoppers and bags.

Installation Methods

1. Concealed clip / dry system (recommended for high-traffic)

Panels clip onto a hidden aluminum sub-frame. Fasteners are invisible, panels can be removed for repair, and the wall can be inspected behind it.

Best for: stations, malls, elevators, long corridors

Substrate: aluminum studs or steel framing

Joint: shadow gap or cover trim

2. Adhesive / direct bond

Panels glued to a flat substrate (plywood, cement board, backer). Faster, cheaper, but less repairable.

Best for: interior fit-outs where the wall will not need opening later

Use: high-strength structural adhesive compatible with stainless

Important: substrate must be flat; any unevenness telegraphs through thin sheet

3. Kick plate protection

Add a separate embossed diamond kick plate at the floor line (100–150 mm height). This takes trolley bumps and mop hits, and can be replaced independently of the main wall.

Installation cautions specific to embossed panels

Pattern direction: line and directional patterns must run the same way across adjacent panels.

Joints: keep them straight; the relief makes misalignment very visible.

No visible welds: weld through the embossed relief destroys the pattern. Use concealed joints, trim or shadow gaps.

Leave expansion gap: stainless moves with temperature; allow a small gap at edges.

**

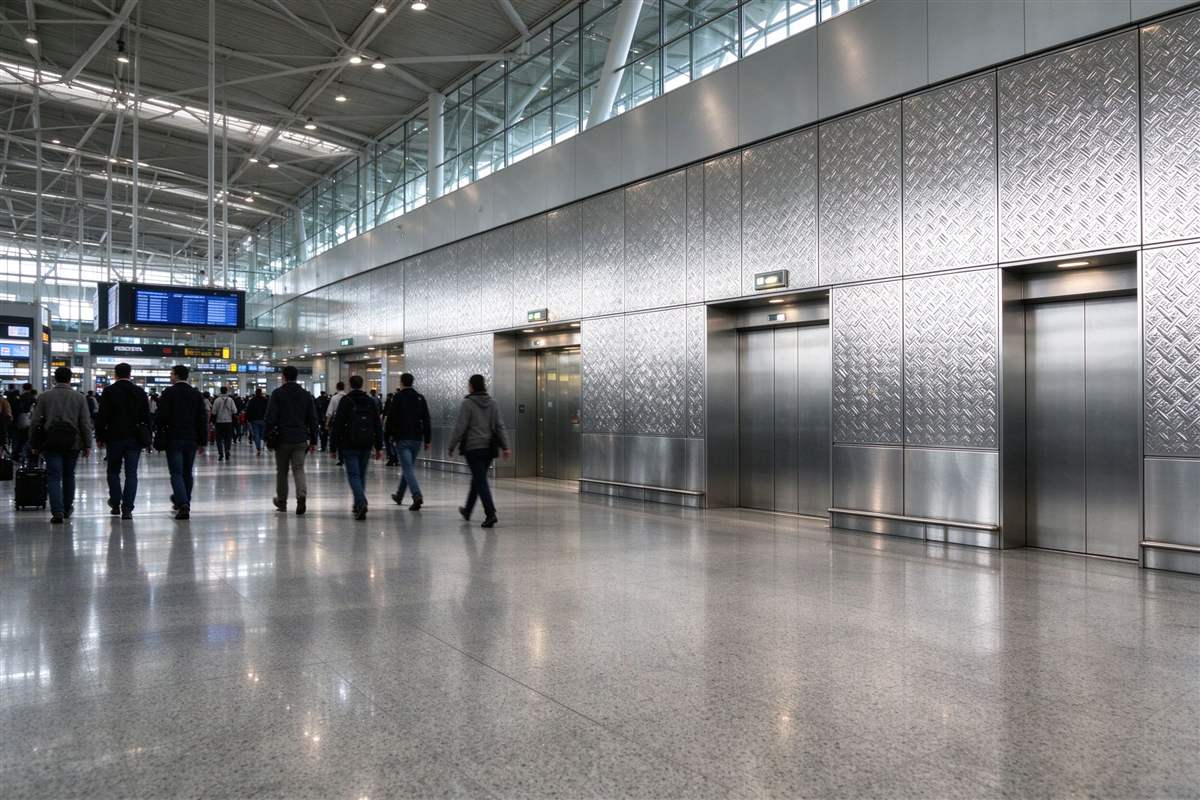

Figure 3: Diamond-pattern embossed panels on a transit concourse — the hard surface takes luggage contact and deep cleaning cycles.

Cleaning and Maintenance

High-traffic walls need a simple, repeatable routine:

Frequency

Action

Daily

Wipe contact areas (elevator buttons, door handles, handrail height) with soft cloth and mild neutral detergent

Weekly

Full wall wipe; soft brush or microfiber on textured grooves to lift trapped dust

Monthly

Inspect joints, kick plates and trim; tighten or replace as needed

Do not use: abrasive scouring pads, steel wool, chloride-based cleaners (especially on 304).

Do use: pH-neutral stainless cleaner, soft microfiber, warm water.

PVD colored panels: same routine; avoid aggressive acids that can dull the coating.

The embossed pattern is permanent — it will not wear off, peel or discolor under normal cleaning.

Common Mistakes

Specifying mirror panels for a mall corridor. Mirror looks premium on day one, then every fingerprint and scuff becomes visible within a week.

Using a sparse bold pattern (moon rock) on a contact wall. The flat areas between craters show fingerprints as much as brushed sheet.

Skipping the kick plate. The floor 150 mm takes the most abuse; protect it with a dedicated diamond plate.

Ignoring pattern direction. Line panels installed in alternating directions read as patchwork.

Glueing to an uneven wall. Thin embossed sheet will telegraph every lump in the substrate.

Welding visible joints. The embossed relief makes welded patches obvious. Plan concealed joints.

Frequently Asked Questions

Q: Is embossed stainless steel suitable for hospital and clinic walls?

Yes, provided the pattern is not too deep (to avoid trapping cleaning compound). Vertical line or smooth brushed embossed in 304 or 316L is common in sanitary corridors. Avoid heavily pitted patterns for medical-grade easy-clean surfaces.

Q: How long do embossed wall panels last in a high-traffic mall?

With proper installation and routine cleaning, embossed stainless walls commonly last 10–20 years without refinishing. The relief does not wear off — it is mechanically formed into the sheet.

Q: Can embossed wall panels be used outdoors?

In 304 for covered areas, 316L for exposed or coastal. Ensure the fixing system and trim are also stainless or aluminum, to avoid corrosion at joints.

Q: What is the minimum thickness for wall cladding?

0.5 mm for low-traffic ceilings and feature walls; 0.6–0.8 mm for standard walls; 0.8–1.0 mm for contact and kick zones. The embossing adds stiffness, so thinner sheet works better than it would flat.

Q: How do I clean the grooves in the embossed pattern?

Use a soft brush (microfiber or nylon) with mild detergent. The grooves are shallow enough that a weekly brush-in-wipe-out keeps them clean; avoid steel wool or abrasive pads.

Q: Can damaged panels be replaced individually?

Yes with the concealed clip system — damaged panels can be popped out and replaced without opening the whole wall. With adhesive installation, replacement is more involved.

Request a Wall Panel Quote

Tell us the zone, grade, pattern and quantity, and we'll recommend the right spec and send samples.

To speed up your quote, include:

Field

Example

Grade

304 / 316L

Thickness

0.6 mm / 0.8 mm / 1.0 mm

Size

1219×2438 mm, or custom cut

Pattern

Vertical line / Small diamond / 5-bar / Antique square

Color / Finish

Silver / PVD bronze / Gold / Black

Application

Mall corridor / Elevator / Station / Restaurant / Hospital

Quantity

by sheet or by m²

Destination

Port / city for shipping estimate

Contact Ferosteel → Request Wall Panel Samples & Quote

Ferosteel manufactures embossed stainless steel wall panels in Foshan, China — vertical line, diamond, moon rock and custom patterns in 201/304/316/430, with PVD color — supplying mall fit-outs, elevator companies, hotel groups, station projects and restaurant chains across Southeast Asia, the Middle East and Europe.

Related reads: embossed stainless steel sheet for the full pattern catalog and specs, or textured stainless steel sheet for pattern selection guidance.
