PVD Colored Stainless Steel for Commercial Kitchens: The Complete B2B Guide 2026

Industry Problem Analysis: Why Commercial Kitchen Materials Fail Prematurely

Commercial kitchens, restaurant chains, hotel catering facilities, and institutional food service operations face a relentless material challenge. The combination of high heat, steam, grease, acidic food spills, and frequent cleaning creates an environment that destroys ordinary building materials at an accelerated rate.

Traditional backsplash materials such as ceramic tiles develop grout-line bacterial growth within months. Quartz and solid-surface countertops stain permanently from turmeric, coffee, and red wine spills. Painted metal panels peel and chip under thermal cycling from cooking equipment. Glass splashbacks, while aesthetically pleasing, are vulnerable to thermal shock and shattering when a hot pot is placed nearby. Even standard 2B-finish stainless steel, despite its corrosion resistance, shows every fingerprint, water spot, and grease smudge — making it look worn and unclean within weeks of installation.

For B2B buyers — including restaurant group procurement managers, hotel development teams, and commercial kitchen fabricators — the financial impact is significant. Frequent material replacement, costly deep cleaning, and health code compliance risks translate directly into operating expenses. Industry data shows commercial kitchens undergo major renovations every 5-7 years, with material failure being a primary driver. The market urgently needs a solution that combines the hygiene of stainless steel with the aesthetic warmth required for open-kitchen and front-of-house dining environments. PVD colored stainless steel delivers exactly this — the corrosion resistance of stainless steel with a warm, designer-friendly palette that stays clean under daily commercial use.

Technical Introduction: The PVD Coating Process for Stainless Steel

PVD (Physical Vapor Deposition) represents a significant advance in surface engineering for architectural metals. Unlike traditional painting, powder coating, or electroplating, PVD is a vacuum deposition process that creates a molecular bond between the coating material and the stainless steel substrate.

How PVD Coating Works

The process takes place in a vacuum chamber. Solid titanium or chromium targets are bombarded with ionized gas particles, causing atoms to be ejected and deposited onto the stainless steel surface at the molecular level. The result is a ceramic-grade coating that is chemically bonded to the base metal — not merely adhered to it like paint. This is what gives PVD-coated steel its exceptional hardness, scratch resistance, and color stability.

Ferosteel utilizes both vertical hanging and horizontal furnace systems for PVD application. The hanging furnace processes flat sheets from 0.5mm to 3.0mm thickness, with a maximum length of 4 meters. The horizontal furnace accommodates widths up to 2 meters. For high-volume production, Ferosteel also offers coil-to-coil PVD coloring for 0.3mm to 1.2mm gauge material.

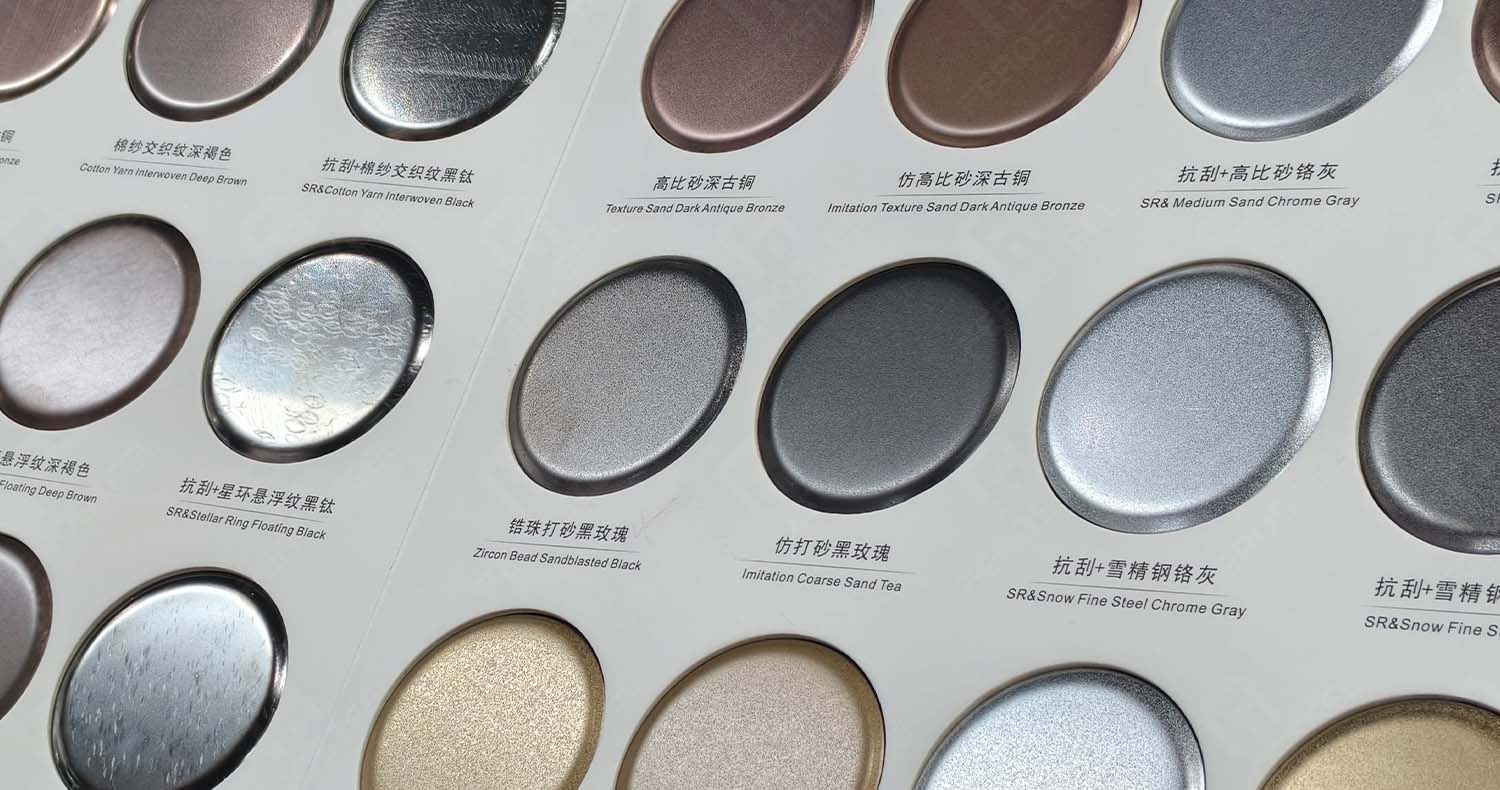

Standard PVD Color Options

Base Material Selection

For commercial kitchen environments, Ferosteel recommends two primary grades: - 304 Stainless Steel (18% chromium, 8% nickel): Suitable for most indoor kitchen applications, offering excellent corrosion resistance and formability. This is the most common and cost-effective choice. - 316L Stainless Steel (2-3% molybdenum): Recommended for coastal environments, high-humidity kitchens, and areas exposed to acidic foods or strong chemical cleaning agents.

Anti-Fingerprint (AFP) Nano-Coating

A critical enhancement for kitchen applications of PVD colored stainless steel is the AFP nano-coating applied over the PVD layer. This oleophobic and hydrophobic barrier: - Repels grease and oil residue from cooking - Prevents water spotting and mineral deposits - Reduces visible fingerprint marks by over 90% - Makes routine cleaning faster and more effective - Extends the visual "like-new" appearance by years

Without AFP treatment, even PVD-finished surfaces would show smudges within minutes in a busy kitchen environment. With it, the surface remains pristine with minimal maintenance.

Ferosteel Solution: Engineered for Commercial Kitchen Demands

Ferosteel (佛山市非若特钢业有限公司), established in 2017 in Foshan, China — the country's metalworking capital — has developed a comprehensive line of PVD colored stainless steel specifically engineered for demanding commercial kitchen and food service environments.

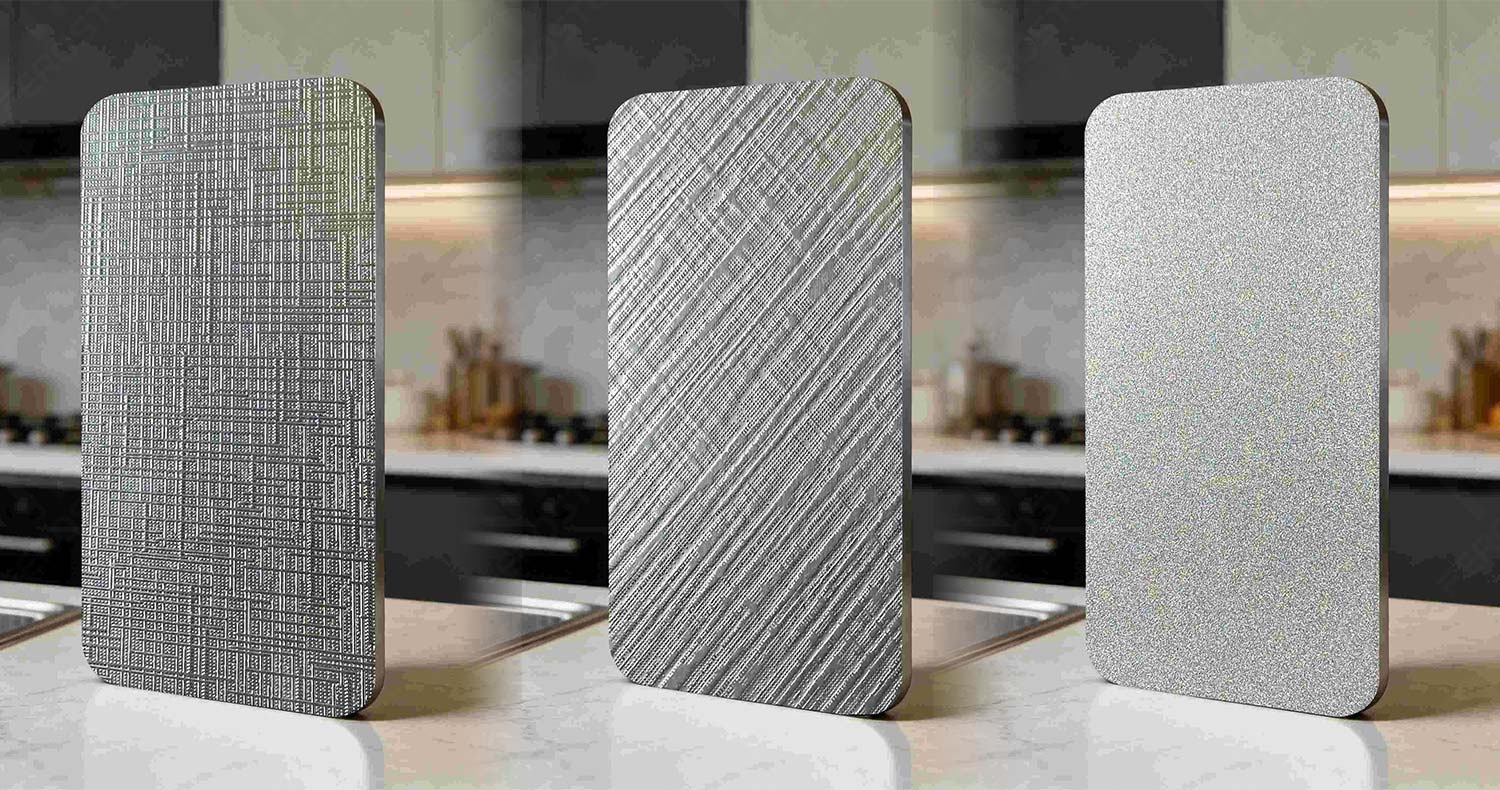

Surface Finish Combinations

Ferosteel offers PVD coating on a variety of base surface finishes:

• Mirror (8K/Super 8K) finish + PVD: Creates a dramatic reflective surface with deep color saturation. Ideal for open-kitchen feature walls and front-of-house accent panels.
• Hairline brushed finish + PVD: Provides a subtle, sophisticated texture that hides minor surface scratches. The most popular choice for kitchen backsplashes and countertop risers.
• Satin (No. 4) finish + PVD: Offers a uniform matte appearance with excellent scratch resistance. Suitable for high-traffic prep areas and cooking stations.
• Vibration (random swirl) finish + PVD: Creates a distinctive, non-directional texture that effectively masks wear in continuously used spaces.

Quality Assurance

Ferosteel uses spectral reflectance testing (Lab* color space measurement) to ensure batch-to-batch color consistency. This is critical for large-scale commercial kitchen installations where even slight color mismatches between panels would be visually unacceptable. The company also offers laser cutting, bending, welding, and polishing services for custom fabrication.

Technical Specifications

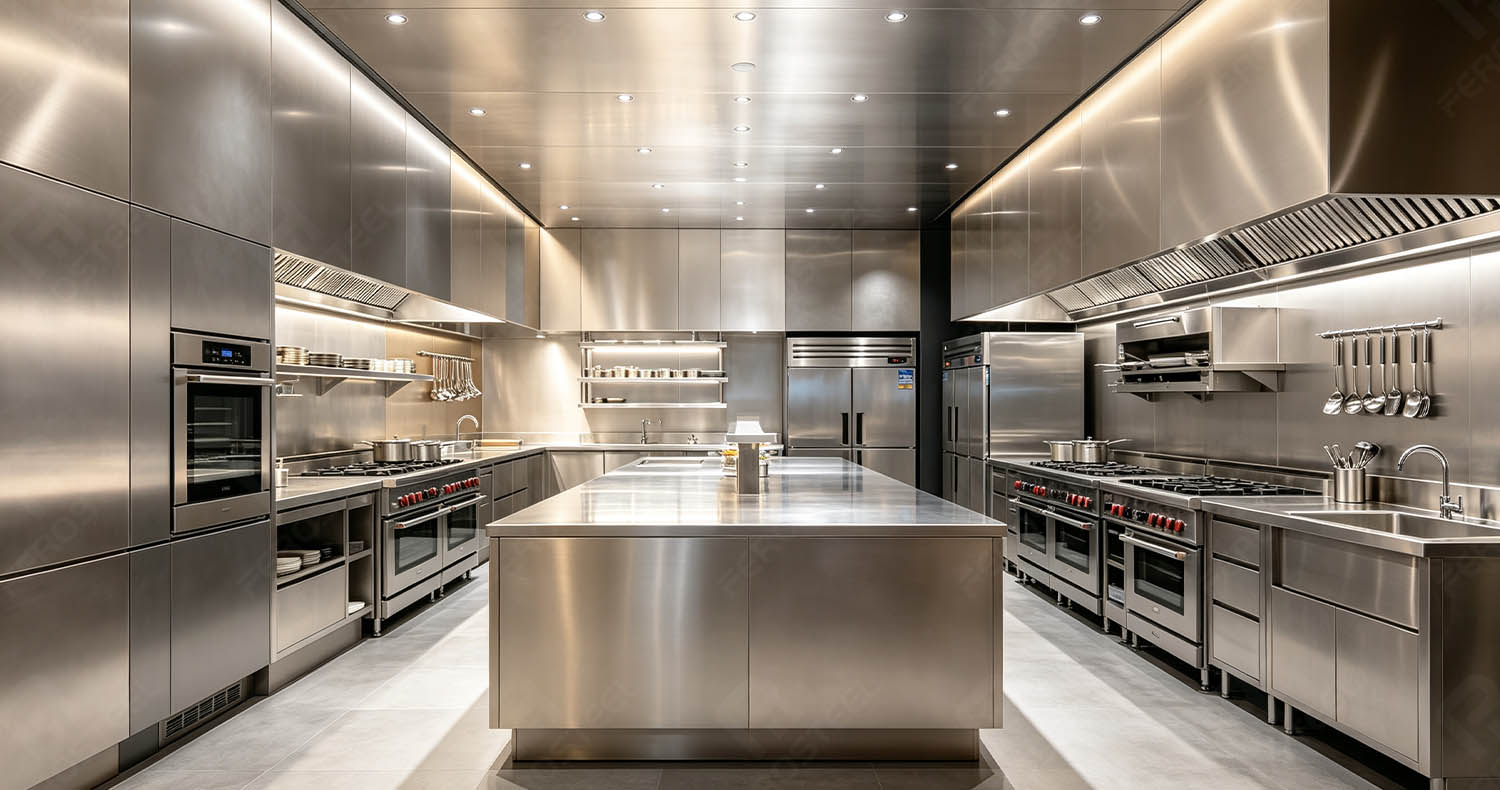

Application Scenarios in Commercial Food Service

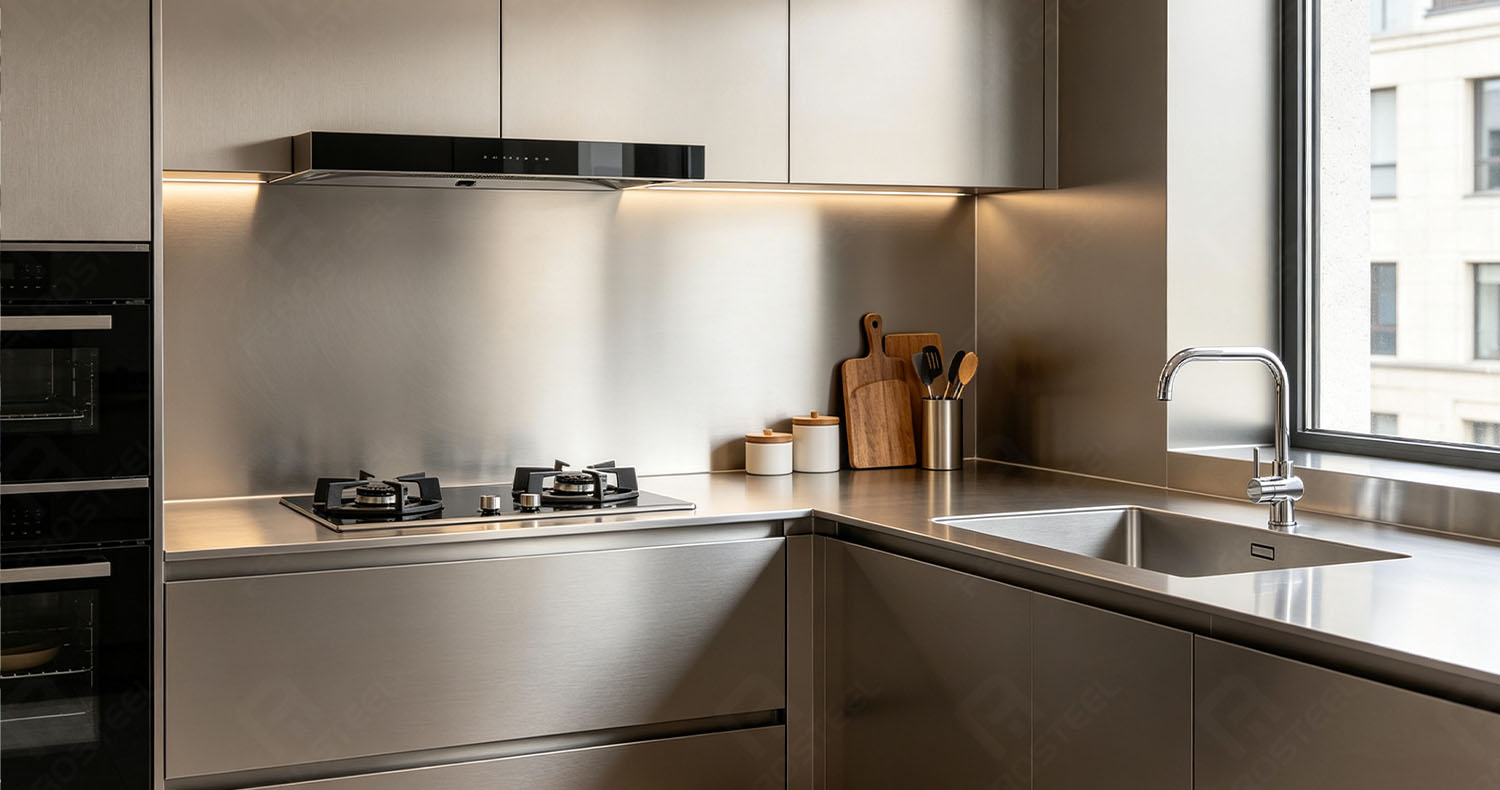

1. Restaurant Chain Backsplashes and Cooking Station Walls

Fast-casual and full-service restaurant chains require materials that withstand daily cleaning with harsh chemicals while maintaining a consistent brand aesthetic. PVD-coated backsplashes in Titanium Gold or Black Titanium offer a premium look that aligns with modern restaurant branding. Unlike painted surfaces, PVD coatings will not fade, chip, or peel under repeated cleaning cycles.

2. Hotel Kitchen and Open-Cooking Displays

Hotels increasingly feature open kitchens where guests can observe food preparation. Rose Gold or Champagne Gold PVD colored stainless steel panels create a warm, inviting backdrop that photographs well for social media. Ferosteel's PVD panels have been specified for hotel projects across Southeast Asia and the Middle East, where durability under high humidity is a prerequisite.

3. Commercial Bakery and Pastry Preparation Areas

Bakery environments involve high sugar content, flour dust, and frequent temperature fluctuations. The non-porous PVD colored stainless steel surface prevents sugar crystals from bonding, while the AFP coating prevents flour dust from adhering. The 304-grade stainless steel substrate provides the necessary food-grade certification.

4. Institutional Kitchens (Schools, Hospitals, Corporate Cafeterias)

These environments operate under strict health regulations. PVD-finished stainless steel offers zero porosity (no bacterial harborage points), thermal shock resistance (withstands hot water and steam cleaning), chemical resistance (compatible with commercial sanitizers), and impact resistance for accidental contact with cookware.

5. Commercial Bar and Beverage Stations

Bar areas face alcohol spills, citrus acids, ice water condensation, and constant wiping. PVD-coated countertops and back-bar panels in Bronze or Black Titanium deliver a sophisticated appearance that withstands high-volume use without staining or showing wear.

Product Advantages vs. Alternative Materials

vs. Ceramic Tile

vs. Standard 2B Finish Stainless Steel

When comparing PVD colored stainless steel to standard 2B finish, the differences are substantial across every evaluation criterion:

Buying Guide for B2B Commercial Kitchen Projects

Step 1: Determine Substrate Grade

For most commercial kitchens, 304 stainless steel provides the right balance of corrosion resistance and cost. When sourcing PVD colored stainless steel, confirm with your supplier that the base metal meets your project's requirements. If your project is in a coastal location or involves high-acid food prep, upgrade to 316L for enhanced pitting resistance.

Step 2: Select the Right Thickness

• 0.5-0.8 mm: Suitable for wall cladding, backsplashes, and decorative panels
• 1.0-1.5 mm: Recommended for countertop surfaces and high-traffic areas
• 2.0-3.0 mm: Required for heavy-duty work surfaces and structural cladding

Step 3: Choose Color and Finish

Consider your brand colors. Titanium Gold and Rose Gold are popular for hospitality environments where PVD colored stainless steel creates a warm, premium aesthetic. Black Titanium and Bronze suit industrial aesthetics. Pair with hairline or satin base finish for the best balance of appearance and practicality.

Step 4: Verify Coating Quality

Request from your supplier: - Salt spray test report (240h minimum for 304 grade) - Color difference report (ΔE ≤ 2 for batch consistency) - Pencil hardness test (3-5H minimum) - AFP coating performance verification

Step 5: Request Samples

Ferosteel provides product samples for evaluation. Test the sheet in your actual kitchen environment — expose it to heat, cleaning chemicals, and food spills — before bulk ordering.

Step 6: Plan Fabrication and Installation

Work with your supplier on cut-to-size service, edge finishing, installation method (adhesive bonding or mechanical fastening), and PE film protection during construction.

Frequently Asked Questions

Q1: Will the color fade under high kitchen heat?

PVD colored stainless steel withstands temperatures up to 500°C. In standard commercial kitchens where surface temperatures rarely exceed 80-100°C, color integrity is maintained for the full 15-20 year lifespan.

Q2: Is PVD-finished stainless steel food-safe?

Yes. The coating is applied to food-grade 304 or 316L substrates. The surface is non-porous, non-toxic, and fully compliant with food contact surface requirements.

Q3: How should we clean it in a commercial kitchen?

Daily cleaning with a soft cloth and mild detergent or commercial kitchen degreaser is sufficient. The AFP coating prevents grease from bonding to the surface. Avoid abrasive pads or chlorine-based cleaners.

Q4: What is the minimum order quantity?

Standard PVD colors: 10-20 sheets. Custom color matching: minimum 2-3 tons for production setup. Contact Ferosteel's sales team for project-specific requirements.

Q5: How does PVD compare to water plating?

PVD colored stainless steel is significantly more durable than water-plated alternatives. The PVD process creates a molecular bond that results in a harder, more scratch-resistant coating with superior color stability. Water plating is more vibrant initially but wears quickly and is not recommended for commercial kitchen use.

Q6: Can it be repaired if scratched?

Minor scratches on brushed finishes can be blended with careful polishing. The AFP coating provides excellent scratch resistance. Keep PE film protection during installation.

Q7: What is the typical lead time?

Standard PVD sheets: 15-25 working days. Custom orders: 30-45 working days. Order 6-8 weeks ahead for large-scale commercial kitchen projects.

Upgrade Your Commercial Kitchen with PVD Colored Stainless Steel

Ferosteel specializes in manufacturing high-quality PVD colored stainless steel sheets for commercial kitchen, hospitality, and food service environments. With a decade of experience, advanced surface treatment capabilities, and a commitment to color consistency, we deliver materials that perform under the most demanding conditions.
