For most decorative water ripple stainless steel ceiling projects, 0.6–1.0 mm is a practical starting range. A 0.5–0.6 mm sheet can work for well-supported lightweight installations, while 0.8 mm provides a useful balance of weight and rigidity. For larger sheets, deeper ripple patterns or applications requiring greater rigidity, 1.0–1.2 mm should be evaluated.
Final thickness should always be selected according to sheet dimensions, ripple depth, supporting structure and installation method.

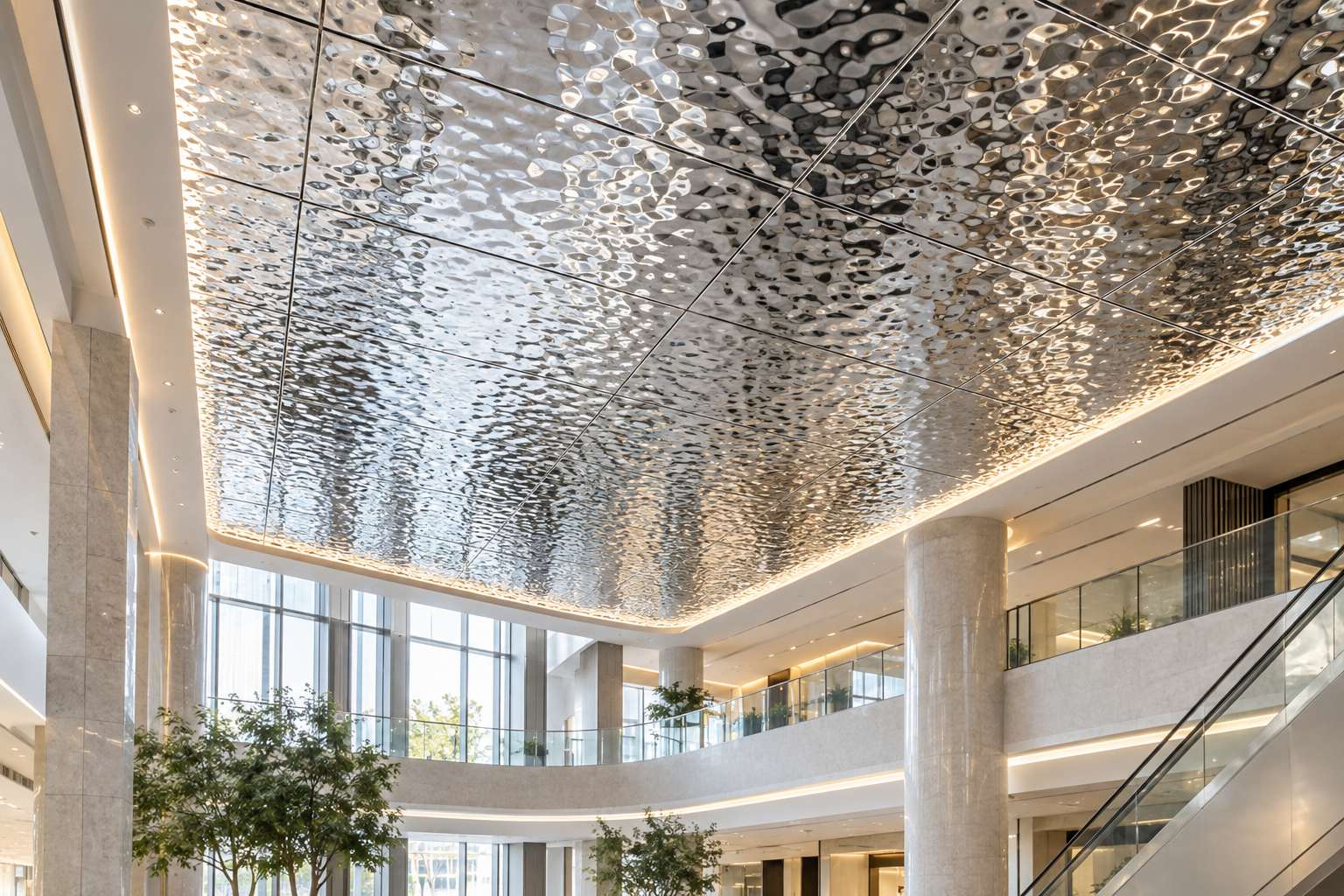

Water Ripple Ceiling Thickness at a Glance
| Thickness | Typical Ceiling Use | Main Consideration |
|---|---|---|
| 0.5 mm | Lightweight decorative covering | Requires adequate support |
| 0.6 mm | Small / medium ripple ceiling | Low weight and good formability |
| 0.8 mm | General commercial ceiling | Balanced rigidity and weight |
| 1.0 mm | Medium / large ripple | Greater rigidity |
| 1.2 mm | Large-format / deeper ripple | Higher rigidity and weight |
Why Does Thickness Matter for a Water Ripple Ceiling?
Water ripple stainless steel differs from an ordinary flat decorative sheet because the surface is formed into a three-dimensional wave profile. Thickness therefore affects several project variables at the same time: rigidity, weight, forming performance, handling and cost.
A thin sheet can reduce material consumption and ceiling weight, but an oversized or poorly supported panel may flex during fabrication or installation. A thicker sheet increases rigidity, but also increases material consumption, shipping weight and the total load carried by the ceiling structure.
How Much Does Stainless Steel Thickness Change the Weight?
Using an approximate stainless steel density of 7.9–8.0 g/cm³, the theoretical flat-sheet weight per square meter is approximately:
| Thickness | Approx. Weight / m² | Approx. 4 × 8 ft Sheet |
|---|---|---|
| 0.5 mm | ~4.0 kg | ~11.9 kg |
| 0.6 mm | ~4.8 kg | ~14.3 kg |
| 0.8 mm | ~6.4 kg | ~19.0 kg |
| 1.0 mm | ~8.0 kg | ~23.8 kg |
| 1.2 mm | ~9.6 kg | ~28.5 kg |
Frequently Asked Questions
For many decorative ceiling projects, 0.6–1.0 mm is a practical range to evaluate. The final choice depends on panel size, ripple depth, backing and installation method.
Yes. 0.8 mm provides a useful balance of rigidity, weight and formability for many commercial interior ceiling applications.
For most dry indoor hotel environments, 304 is commonly used. 316L should be considered where chloride exposure or corrosion risk is higher.
Yes. Gold, champagne gold, rose gold, black, bronze and other PVD decorative colors can be combined with water ripple surfaces.
Related Water Ripple Stainless Steel Products

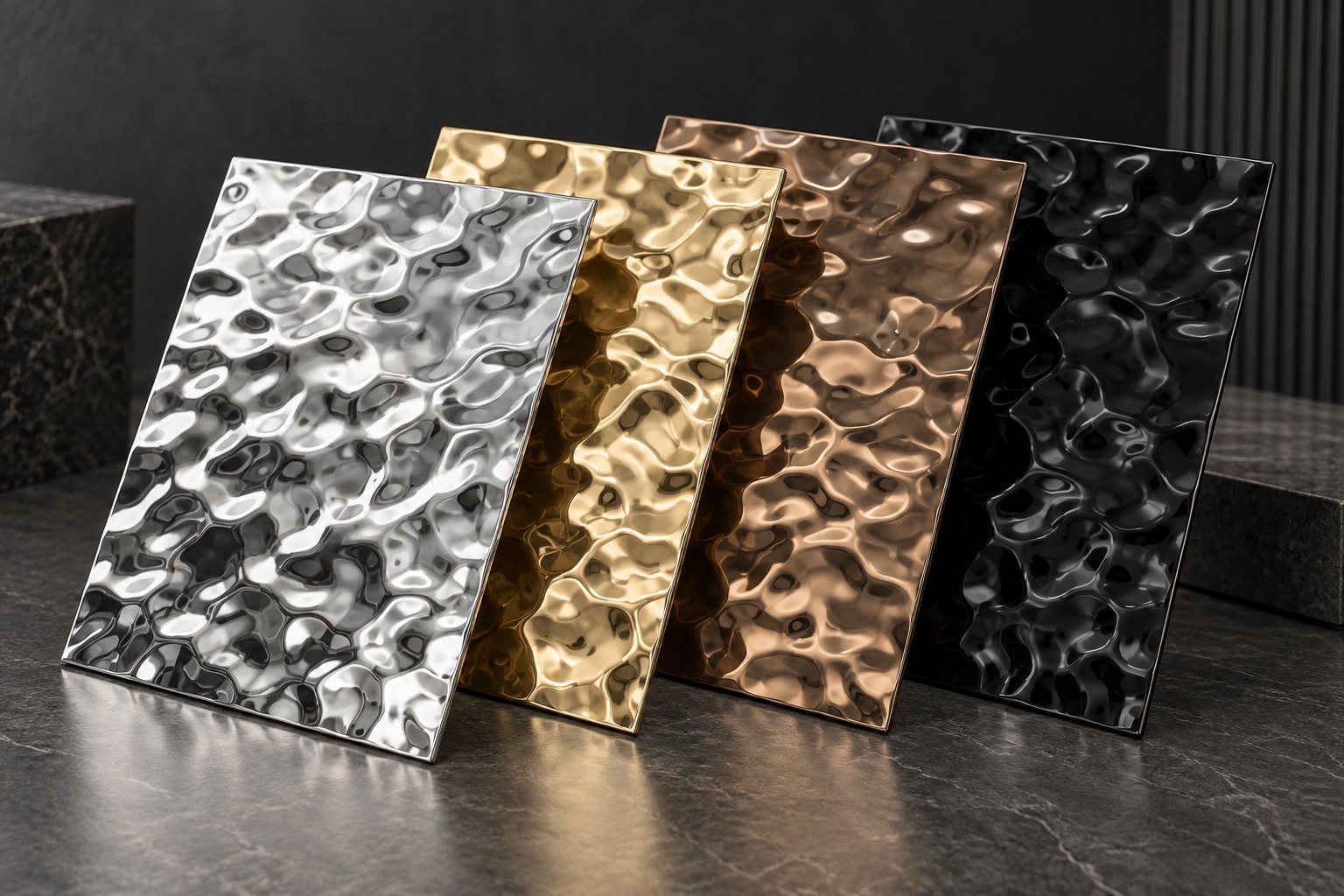

Water Ripple Stainless Steel Sheets
Explore available water ripple patterns, grades, dimensions and finishes.
View Water Ripple Stainless Steel →Medium Wave Water Ripple Stainless Steel
Medium-wave stainless steel for ceilings, walls and architectural feature areas.
View Medium Wave Sheet →
Request a Water Ripple Ceiling Sample or Quote
For an accurate quotation, send Ferosteel your project specifications. If the thickness has not yet been finalized, include the ceiling module size, total project area and installation method.
