- Elevator Cab Interiors - Wall Cladding and Feature Panels - Retail and Hospitality Spaces - Furniture and Decorative Accents

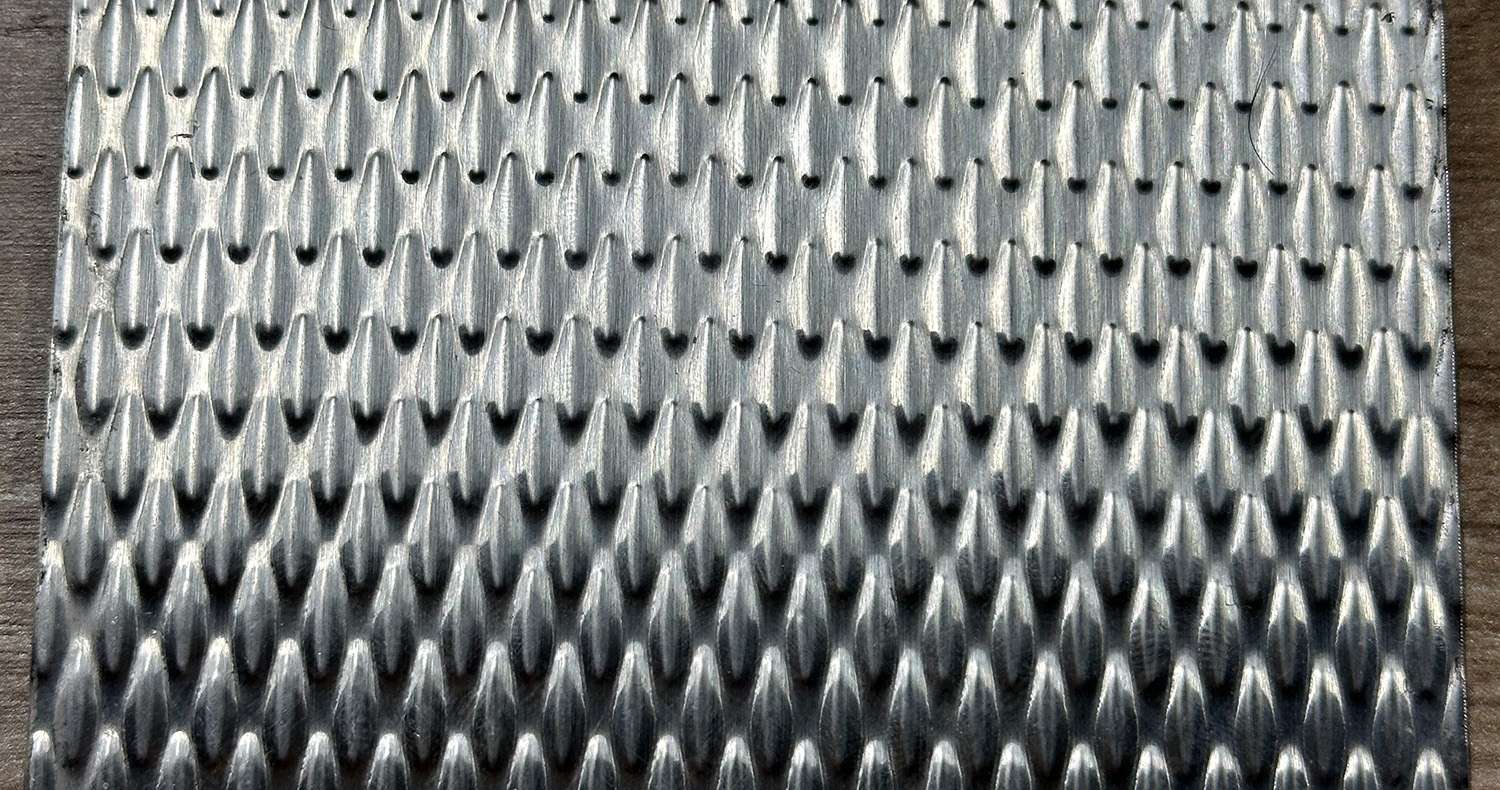

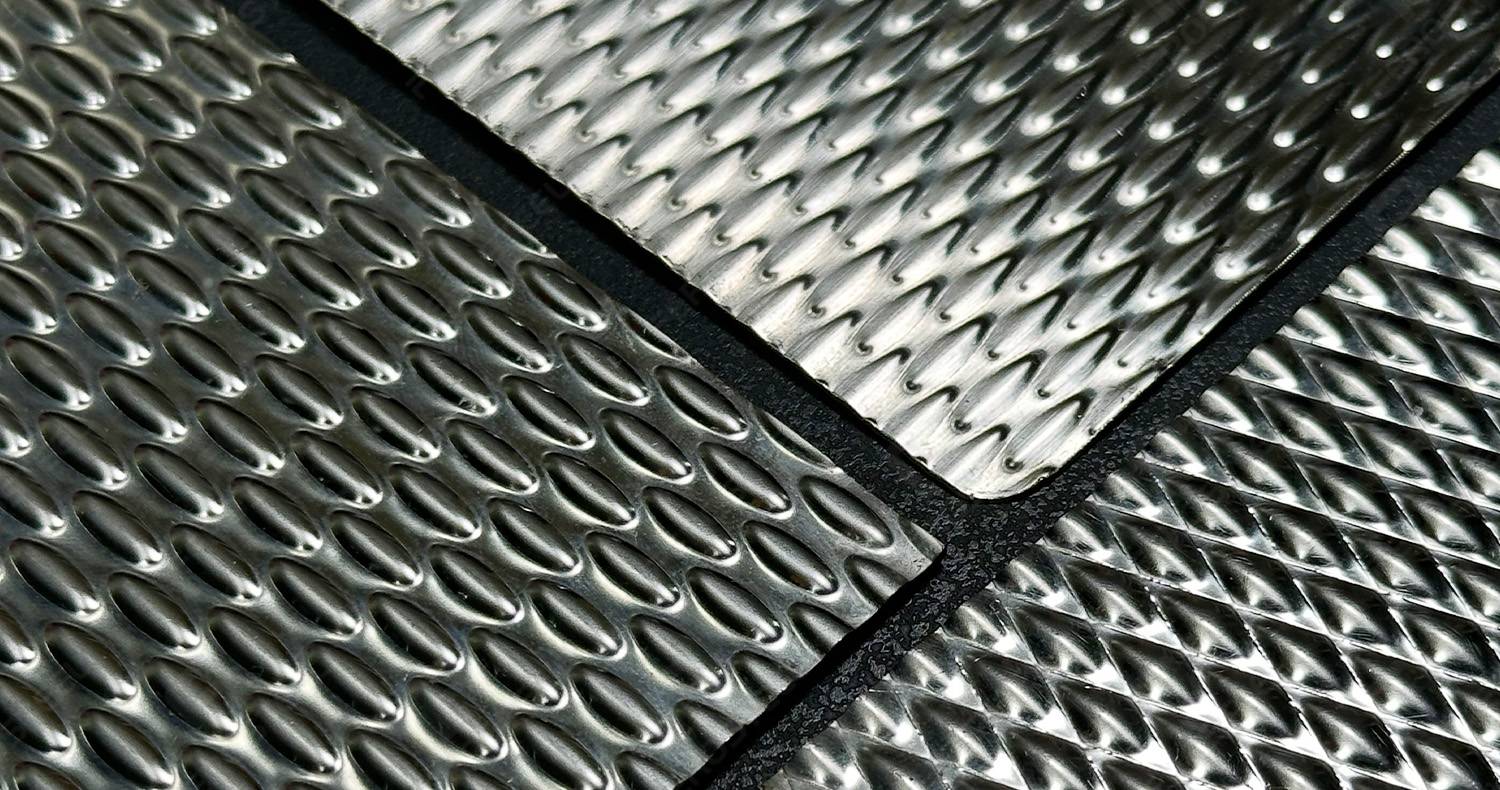

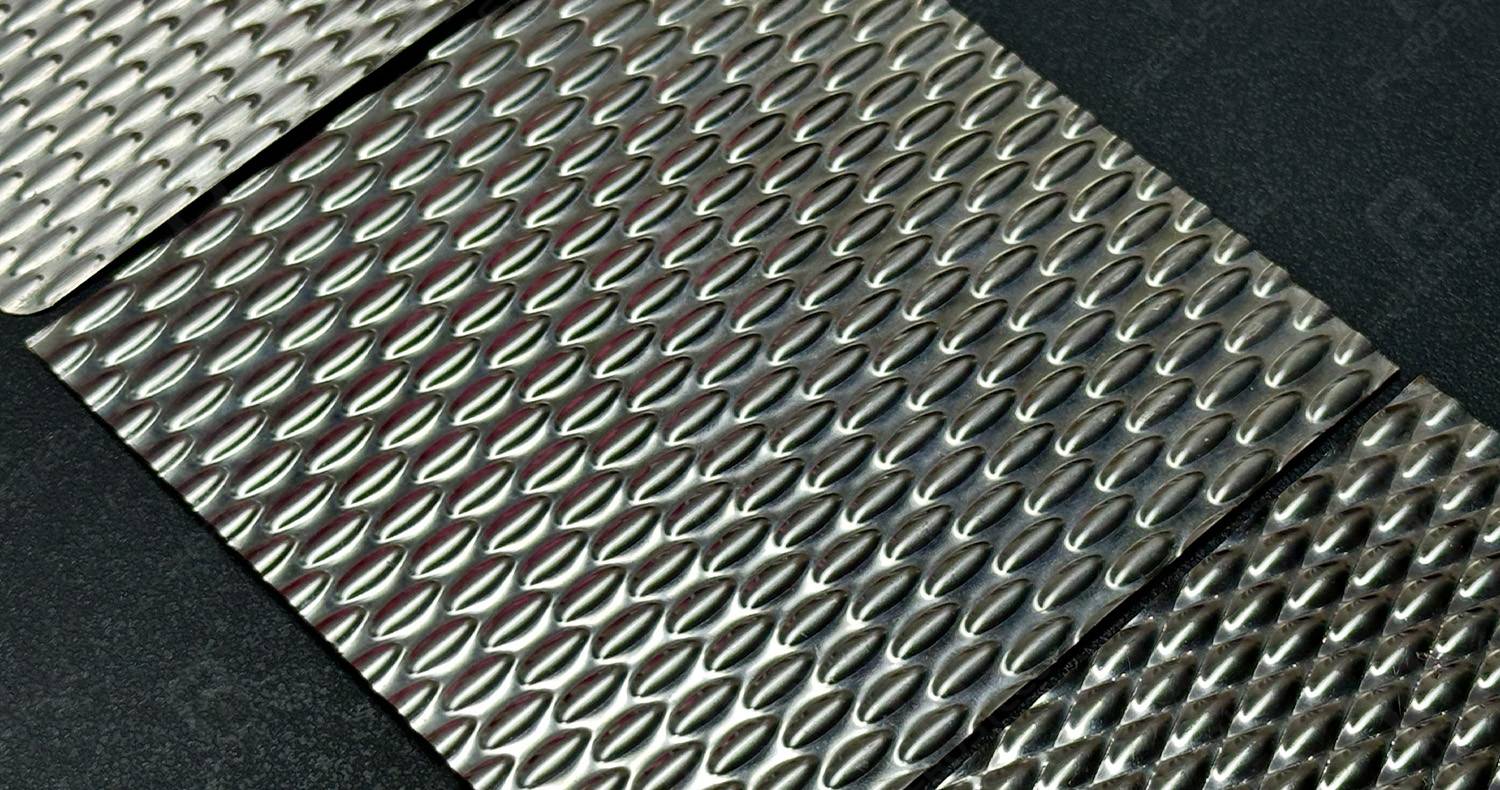

5WL small rain drop stainless steel is a decorative metal sheet featuring a compact, evenly distributed embossed pattern that resembles tiny rain drops on a flat surface. The "5WL" designation refers to the pattern specification — a smaller, denser version of the well-known 6WL rain drop texture. Each raised dimple on a 5WL stainless steel sheet is approximately 5 mm in diameter, creating a fine, uniform texture that offers visual interest without overwhelming the surrounding design.
Architects and interior designers increasingly choose the small rain drop finish for projects that demand subtle tactile and visual depth. Unlike mirror-polished surfaces that can feel sterile, or coarse textures that dominate a room, 5WL strikes a balance: it catches light gently, reduces glare, and provides a surface that resists fingerprints and minor scratches — qualities especially valued in high-traffic commercial environments.
The stamped stainless steel sheet manufacturing method ensures consistent pattern quality across large production runs, making 5WL a reliable choice for projects requiring multiple panels with identical appearance. For those looking to source this material, Ferosteel offers the 5WL stainless steel sheet in standard and custom sizes.
Understanding the differences between textured stainless steel patterns helps designers select the right finish for each project. Below is a detailed comparison of the most common embossed finishes:
| Feature | 5WL Small Rain Drop | 6WL Rain Drop | Water Ripple | Moon Rock |
|---|---|---|---|---|
| --- | --- | --- | --- | --- |
| Pattern size | ~5 mm (compact) | ~6 mm (medium) | Flowing wave lines | Irregular rock texture |
| Visual density | High — closely spaced | Medium — moderate spacing | Low — flowing lines | Medium — organic shapes |
| Light reflection | Soft, diffused | Moderate, directional | Dynamic, moving | Dramatic, sculptural |
| Fingerprint resistance | Excellent | Very good | Good | Excellent |
| Typical use | Elevators, panels, furniture | Elevators, walls, façades | Ceilings, feature walls | Luxury interiors, cladding |
| Scratch resistance | High | High | Moderate | High |
| Subtlety level | Very subtle | Moderate | Low (dramatic) | Low (bold) |
The key takeaway: 5WL is the most compact and subtle of the standard embossed patterns. When a designer wants a textured metal panel that adds depth without dominating the visual field, 5WL is often the preferred choice. Its tighter pattern means more contact points per unit area, which translates to better fingerprint concealment and a more refined tactile feel.
For projects requiring a bolder texture, the 6WL rain drop stainless steel offers a larger, more pronounced emboss. Designers working on luxury feature walls might consider the water ripple stainless steel or moon rock patterns for dramatic visual impact.
The production of a 5WL stamped stainless steel sheet involves precision roll-forming technology:
The roll-embossing method guarantees pattern repeatability across entire sheet surfaces, unlike hand-hammered alternatives that can vary in texture density. This consistency is essential when multiple panels must align seamlessly in a large installation.
Elevator cabs are one of the most common applications for 5WL stainless steel. The compact rain drop pattern provides several advantages in this confined space:
Designers often pair 5WL wall panels with contrasting finishes on elevator doors and ceilings for a cohesive yet varied interior. The 6WL rain drop finish is also widely used in elevator applications, but 5WL offers a quieter, more refined aesthetic where space constraints demand subtlety.
In commercial and hospitality settings, textured metal panels clad walls to create visual interest and durability. 5WL panels work particularly well in:
Unlike flat mirror sheets that reveal every imperfection in the wall substrate, 5WL's embossed surface masks minor substrate irregularities, simplifying installation and reducing prep work.
Retail environments benefit from 5WL's ability to maintain a clean appearance under heavy foot traffic. Store fixture panels, display backs, and checkout counters all leverage the small rain drop finish for:
For heritage-inspired hospitality interiors, designers may combine 5WL with antique copper stainless steel or antique bronze hairline finish panels to create layered visual narratives.
Beyond large surfaces, 5WL sheets are cut and formed into:
The compact pattern scale makes 5WL particularly suitable for smaller furniture pieces where a larger emboss (like 6WL or water ripple) would look disproportionate.
| Specification | Standard Range |
|---|---|
| --- | --- |
| Pattern | 5WL (small rain drop, ~5 mm diameter) |
| Thickness | 0.5–2.0 mm (0.8–1.2 mm most common for interior panels) |
| Sheet size | 1220 × 2440 mm (4' × 8') standard; custom sizes available |
| Grades | 201, 304, 316L (304 most common; 316L for coastal/marine environments) |
| Surface depth | 0.3–0.5 mm emboss depth |
| Available finishes | Plain embossed, PVD colored, anti-fingerprint coated |
| PVD colors | Gold, rose gold, bronze, black, champagne, blue, custom |
Grade selection guidance:
Proper installation ensures long-term performance and aesthetic consistency:
One of 5WL's strongest selling points is low maintenance:
For commercial kitchens and high-contact surfaces, the anti-scratch stainless steel countertop offers an alternative finish optimized for food preparation environments.
"5WL" is an industry pattern designation for a small rain drop emboss approximately 5 mm in diameter. It refers to the specific roller die used during the stamping process. The "5" indicates the pattern size class, and "WL" stands for the emboss style (similar to the broader "WL" family that includes 6WL). The 5WL pattern creates a compact, closely spaced texture that is subtler than 6WL.
5WL can be used in sheltered exterior locations (covered façades, canopies, porch panels) when specified in Grade 316L stainless steel. For fully exposed exterior cladding where weather and salt exposure are significant, Grade 316L with a PVD anti-fingerprint coating provides the best long-term performance. Always consult the manufacturer for exterior-grade recommendations.
Yes. 5WL embossed sheets are an excellent substrate for PVD (Physical Vapor Deposition) color coatings. The textured surface interacts with colored PVD layers to produce a rich, dimensional appearance — the raised dimples catch light at different angles, creating subtle color variation across the panel. Popular PVD options on 5WL include gold, rose gold, bronze, champagne, and black. PVD coatings are highly durable and do not fade under normal interior conditions.
5WL significantly outperforms bead blast for fingerprint concealment. Bead blast creates a uniform matte surface that still shows finger oils clearly under certain lighting angles. The 5WL embossed pattern, by contrast, breaks up the visual continuity of the surface, making fingerprints far less visible. For environments where appearance under frequent contact matters (elevators, reception desks), 5WL is the superior choice.
For most interior wall cladding applications, 0.8–1.0 mm thickness in Grade 304 provides adequate rigidity and ease of handling. For larger panels (over 1 m²) or ceilings, 1.0–1.2 mm prevents sagging. Furniture accents and small decorative pieces can use 0.5–0.6 mm for easier bending and forming. Always factor in the substrate support method — adhesive-mounted panels require slightly thicker material than mechanically fastened ones.
Ferosteel manufactures and exports 5WL stainless steel sheets in Grades 201, 304, and 316L with a range of surface treatments including PVD colors and anti-fingerprint coatings. Standard sheet size is 1220 × 2440 mm, with custom dimensions available for project-specific requirements. Visit the 5WL stainless steel sheet product page for specifications, pricing, and sample requests.
Looking for the right textured stainless steel finish for your next project? Contact Ferosteel for free samples, custom PVD color options, and competitive quotations on 5WL small rain drop stainless steel sheets. Our team supports architects, designers, and contractors worldwide with project-specific specifications and fast export delivery. Get in touch today.
