Textured Stainless Steel Sheet: How to Choose a Pattern|Ferosteel

Textured Stainless Steel Sheet: How to Choose a Pattern

Oct 23, 2026

By Ferosteel Technical Team | Reviewed by Engineering Dept. | Last updated: October 2026

Quick Answer: To choose a textured stainless steel pattern, first match the pattern scale to the viewing distance and room size — fine patterns for small rooms and close views, bold patterns for large lobbies and long sightlines. Then consider traffic (denser textures hide fingerprints), lighting (grazing light flatters raised patterns), and whether to add PVD color. Order a physical sample before committing; a pattern that looks right in a photo can read wrong at full wall scale.

Why Texture at All

Textured (embossed / stamped) stainless steel earns its place in commercial interiors for three practical reasons:

It hides the evidence of use. Raised patterns break up reflections, so fingerprints, smudges and fine scratches that scream on mirror or plain brushed sheet barely register on a textured surface.

It adds depth without glare. A textured wall catches light and shadow instead of bouncing hard reflections — the effect is architectural, not mirror-like.

It stiffens thin sheet. Embossing adds rigidity, which means thinner gauge can be used for wall and ceiling panels than with flat sheet.

The design question is never "should we use texture?" but "which pattern, and at what scale?" That is what this guide answers.

**

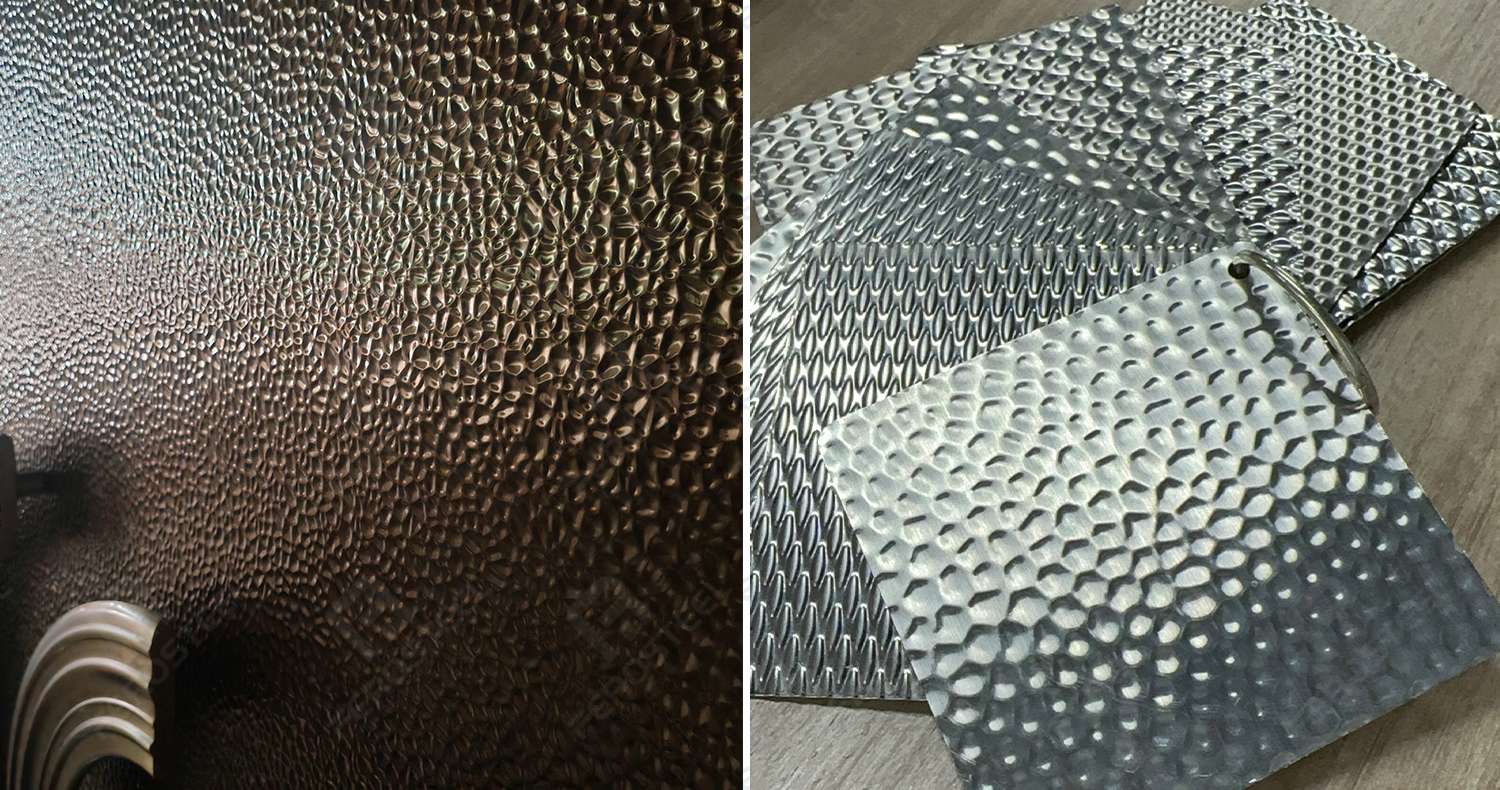

Figure 1: Textured stainless panels — the raised pattern catches light at different angles, creating depth that flat sheet cannot.

Step 1: Ask These Five Questions First

Before looking at pattern books, answer these. They eliminate most wrong choices:

1. What is the viewing distance?

Under 2 m (elevator, door, furniture): fine, dense patterns — vertical line, small diamond, 5-bar

2–8 m (corridor, reception wall): medium patterns — medium diamond, standard line

Over 8 m (lobby, atrium, long wall): bold patterns — moon rock, big wave, antique square

Patterns are like text: the farther the viewer, the larger the scale needed to register.

2. How big is the surface?

A 1.2 m² accent panel and a 40 m² lobby wall need different pattern densities. Large uninterrupted walls magnify pattern repetition — a busy pattern across a huge wall becomes visual noise.

3. Who touches it?

Elevators, doors and handrail-height walls take daily contact. Dense textures (vertical line, diamond, bead) hide marks; deep, sparse textures (moon rock) show handling on the flat areas between craters.

4. What is the lighting?

Direct downlights: cast strong shadows into grooves — dramatic, can look heavy

Grazing / wall-wash light: flatters any raised pattern, highlights relief

Diffuse / low light: pattern softens and can disappear — choose deeper relief

5. What is the overall design language?

Minimal / tech: fine line, small diamond, 5-bar

Organic / natural: moon rock, ripple, wave

Classic / vintage: antique square, linen, snake skin

Luxury / statement: big wave, custom die-stamped motifs, PVD colored texture

Step 2: Match the Pattern to the Space

Space

Recommended Patterns

Why

Elevator interior

Vertical line, small diamond

Close view, high touch, small area — fine and dense works

Elevator lobby

Medium line, medium diamond, moon rock

Medium distance, prestige, moderate traffic

Hotel corridor

Vertical line band, linen

Long narrow sightline — line patterns reinforce the axis

Lobby feature wall

Moon rock, big wave, antique square

Long distance, statement piece, dramatic relief

Retail display wall

Fine diamond, PVD colored line

Products need to dominate — texture must stay background

Restaurant / bar

Antique square, snake skin, PVD bronze texture

Warm, tactile, vintage-luxury mood

Office reception

5-bar, small diamond, silver line

Clean, corporate, low visual drama

Door and furniture fronts

Vertical line, fine diamond

Handled daily — dense texture hides fingerprints

The core rule: background surfaces take background patterns; statement walls take bold patterns.

Step 3: Choose Pattern Density and Scale

Pattern density (how tightly the relief repeats) and scale (size of each repeat) are the two levers.

**

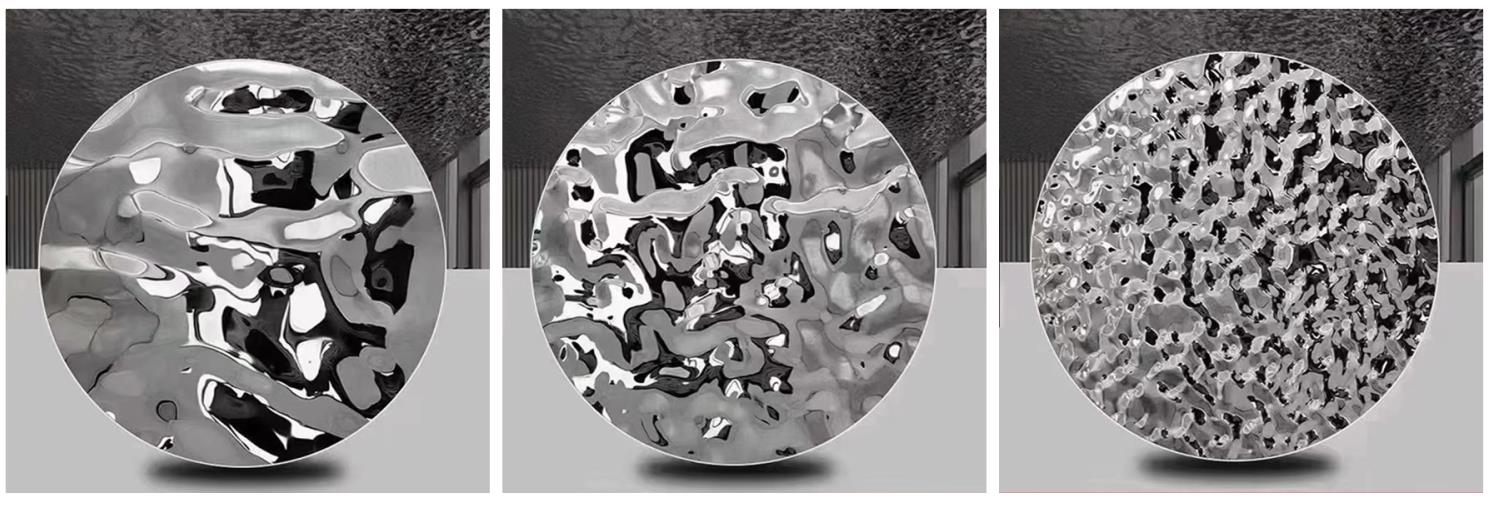

Figure 2: The same family of patterns at three densities — sparse (left), medium (center) and dense (right). Density changes how the wall reads from a distance.

Density decisions

Density

Effect

Use when

Sparse (large gaps between relief)

Bold, sculptural, strong light/shadow

Feature walls, big lobbies, focal columns

Medium

Balanced texture, reads as "metal with character"

Corridors, reception, general cladding

Dense (tight relief)

Quiet, fine, almost fabric-like

Elevators, doors, furniture, small rooms

Scale decisions

Fine scale (10–25 mm repeat): reads as texture, not pattern. Safe on any size wall.

Medium scale (25–60 mm): reads as deliberate pattern from 2–5 m.

Bold scale (60+ mm): reads as strong design statement from across a room.

When in doubt, go one step finer than your instinct. Texture that is too subtle can be forgiven; a pattern that overwhelms the room cannot.

Step 4: Decide on Color

Texture and color are independent choices. The same pattern in silver, black and bronze reads completely differently:

Color over texture

Effect

Silver / natural

Architectural, neutral, modern-minimal

Gold / champagne

Luxury, warm, hotel-grade

Bronze / antique

Vintage, classic, restaurant-bar mood

Black titanium

Dramatic, contemporary, high-contrast

White / light PVD

Soft, delicate, boutique

Two cautions:

PVD color darkens the pattern — deep grooves trap less light when dark. A bronze moon rock looks moodier than a silver one; make sure that is the intent.

Test color + pattern together — the interaction of relief and coating is hard to predict from catalog images.

**

Figure 3: Moon rock pattern from Ferosteel — an irregular cratered relief made for bold lobby walls; pairs well with PVD bronze or gold.

Step 5: Avoid These Six Mistakes

Bold pattern in a small room. A moon-rock wall in a 12 m² elevator lobby or boutique overwhelms the space. Scale the pattern to the room, not the brochure.

Fine pattern on a huge lobby wall. Vertical line across a 40 m wall reads as grey shimmer, not texture. Use bold relief or add spacing between panel bands.

Mixing pattern families on one wall. Different textures in the same wall compete. Use one pattern, or deliberately separated zones with a clear joint.

Ignoring pattern direction. Line and directional patterns must run the same way across adjacent panels — or grain the wall looks patchy.

Deep texture under direct downlights. Heavy relief with overhead spotlights can look cavernous and dirty in shadow. Prefer grazing light or accept the moody look.

Ordering without a physical sample. Screen rendering flattens relief. See the real panel under your lighting before committing.

Why a Sample Is Non-Negotiable

Pattern selection cannot be done from photos alone. Three things change between image and reality:

Reflectivity — a pattern that looks matte in a photo may glint under your specific lighting

Scale perception — 50 mm repeats look delicate in a phone photo and massive on a 3 m wall

Color interaction — PVD tone over relief looks different than over flat sheet

Ask for samples in your target finish and color, and view them at arm's length and from across the room, under your actual lighting scheme. Ferosteel provides free samples on request.

Frequently Asked Questions

Q: What is the difference between textured, embossed and stamped stainless steel?

They are overlapping terms. "Textured" is the umbrella term for any sheet with surface relief. "Embossed" usually means continuous roller-pressed patterns (diamond, line, square). "Stamped" means die-pressed patterns, often deeper or custom (vertical line, ripple, logos).

Q: Which pattern hides fingerprints best?

Dense, fine patterns — vertical line, small diamond, 5-bar — hide fingerprints best because the tight relief breaks up reflections and smudges. Sparse patterns like moon rock show handling on the flat areas between craters.

Q: Can I combine different textured patterns in one project?

Yes, but deliberately. Use one pattern for the dominant surface and a different one for defined accent zones with a clean joint between them. Never mix two patterns randomly across the same wall.

Q: Should the pattern match the viewing distance or the room size?

Both, but viewing distance dominates. A fine pattern at close range (elevator, door) stays fine even in a large building; a bold pattern needs both distance and wall area to work. Match scale to the closest regular viewing position.

Q: Does PVD color change how the pattern looks?

Yes, significantly. Dark colors (black, bronze) deepen the shadows in grooves and make the pattern look moodier; light colors (silver, white) soften the relief. Always test color and pattern together on a sample.

Q: How do I know if a pattern will look too busy at full scale?

Order a sample and view it from the planned viewing distance, not up close. A useful rule: if you can count the repeats across the wall from the main viewing point, the pattern is too bold — go finer.

Request Textured Sheet Samples

Tell us the space, viewing distance and style direction, and we'll recommend patterns and send physical samples.

To speed up your quote, include:

Field

Example

Grade

304 / 316L / 201

Thickness

0.5 mm / 0.8 mm / 1.0 mm

Size

1219×2438 mm, or custom cut

Pattern family

Line / Diamond / Moon rock / Wave / Antique square

Pattern scale

Fine / Medium / Bold (or exact repeat)

Color

Silver / PVD gold / Bronze / Black

Application

Elevator / Lobby / Corridor / Door / Furniture

Destination

Port / city for shipping estimate

Contact Ferosteel → Request Texture Samples & Quote

Ferosteel manufactures textured stainless steel sheets in Foshan, China — embossed, stamped, moon rock, ripple and custom patterns in 201/304/316/430 with PVD color — supplying elevator companies, hotel fit-outs, retailers and furniture makers across Southeast Asia, the Middle East and Europe.

Related reads: embossed stainless steel sheet for the full pattern catalog and specifications, or water ripple stainless steel sheet for wave-textured surfaces.
